AI Workflow Anatomy: Essential Guide for Business

[2026-04-26] [Kyle Beyke]

Table of contents

Lesson

AI workflow anatomy inside a company

Learning Objectives

  • Identify the core components of a business AI workflow.
  • Explain how an AI workflow differs from a standalone chatbot.
  • Map common business use cases to workflow stages such as retrieval, validation, and human approval.
  • Design a simple AI workflow with clear control points and measurable outputs.
  • Recognize common failure modes in business AI systems and plan safeguards.

Prerequisites

No deep machine learning background is required. It helps to understand basic software workflows, APIs, and common business systems such as email, ticketing, CRM, or document storage. Familiarity with LLMs is useful but not necessary.

AI workflow is the right mental model for business AI.

That sentence matters because many teams still picture AI as a box that receives a prompt and returns an answer. That picture is incomplete. In a company, useful AI rarely lives as an isolated chatbot. It sits inside a broader operating process with defined inputs, business rules, retrieval steps, output checks, human decisions, actions in other systems, and performance tracking over time. NIST’s AI Risk Management Framework explicitly treats AI as part of a larger socio-technical system and emphasizes managing context, risks, and operational impacts rather than treating the model as a self-contained feature.

That systems view is also how modern tool-using AI products are built. Anthropic’s tool-use documentation describes a loop in which the model decides when to call tools, returns a structured tool call, and then relies on the surrounding application to execute the action and continue the workflow. In other words, the model is only one step in the chain.

So the core lesson of this article is simple: AI in business is a system inside a workflow, not a chatbot floating in space.

Why the AI workflow view matters

The workflow view changes design decisions immediately.

If you think the model is the product, you will focus on prompts and model selection first. If you think the AI workflow is the product, you will focus on the business process first. You will ask where data enters, what event should trigger execution, what information the system needs, what output structure is acceptable, when a human must approve, which downstream system should be updated, and how you will know whether the workflow is actually helping.

That is much closer to how real production systems operate. Google Cloud’s generative AI architecture guidance describes a typical architecture as a collection of connected services rather than a single model call, and its observability guidance frames operational visibility as necessary to understand application behavior, health, and performance.

For a business team, this matters for three reasons.

First, it keeps AI tied to a real business outcome. A support team does not need “an AI assistant” in the abstract. It needs faster, safer response handling for incoming messages. A sales team does not need “an LLM experience.” It needs a reliable way to summarize calls, identify next steps, and write updates into the CRM.

Second, it makes control possible. Once the workflow is visible, you can put checks in the right places. Some outputs can be auto-approved. Others should require review. Some actions can write to internal notes. Others should never send externally without human signoff.

Third, it makes measurement possible. If the workflow is explicit, you can measure cycle time, approval rates, error rates, correction rates, downstream completion, and business impact. Without that structure, you are left with vague impressions.

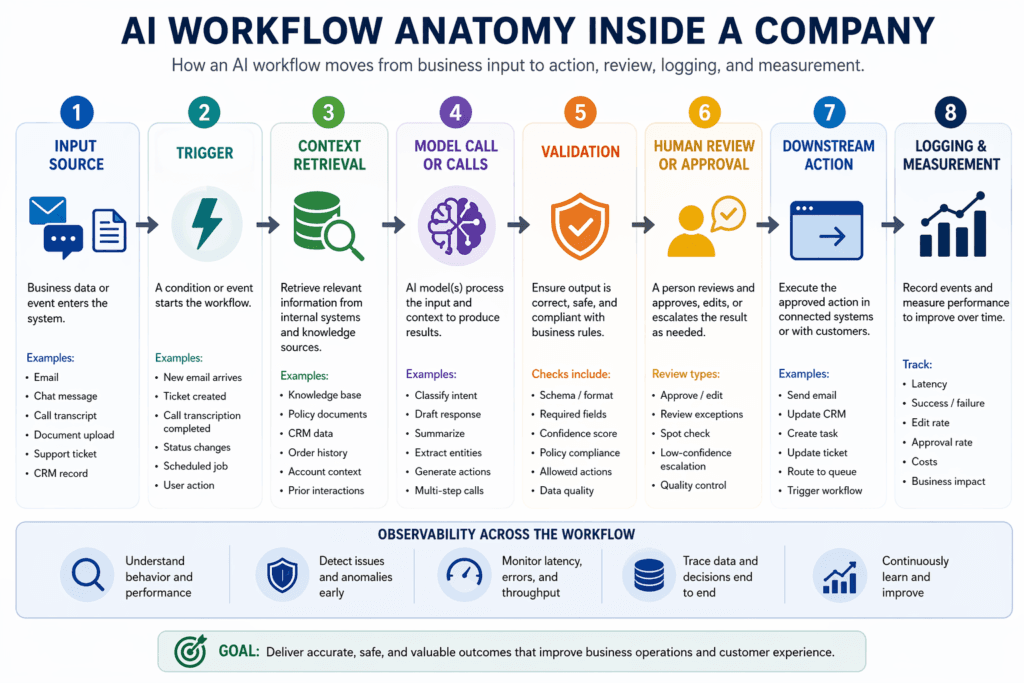

The 8 components of a business AI workflow

Most business AI workflows can be broken into eight recurring parts:

  1. Input source
  2. Trigger
  3. Context retrieval
  4. Model call or model calls
  5. Validation
  6. Human review or approval
  7. Downstream action
  8. Logging and measurement

Not every workflow gives each component equal weight, but most production systems include all of them in some form.

1) Input source

The input source is where the workflow begins. It is the business data or event payload entering the system.

Examples include:

  • an inbound support email
  • a customer chat message
  • a sales call transcript
  • a PDF uploaded to a claims queue
  • a CRM note
  • a help desk ticket
  • a monitoring alert
  • a document approval request

This sounds obvious, but teams often skip it and start with the prompt instead. That is backward. The input source determines everything downstream: data shape, timing, retrieval needs, privacy concerns, and evaluation criteria.

A support email contains free text, metadata, sender information, and possibly attachments. A sales transcript contains long-form conversation text, speaker turns, timestamps, and likely some CRM context. Those are not the same problem, so they should not be treated as the same “prompt in, answer out” pattern.

2) Trigger

The trigger is the condition that starts the workflow.

Some triggers are event-based:

  • a new email arrives
  • a call recording is transcribed
  • a ticket status changes
  • a new document lands in a folder

Some triggers are user-initiated:

  • an agent clicks “Draft response”
  • a salesperson clicks “Summarize call”
  • an operator asks for exception review

Some triggers are scheduled:

  • end-of-day account summaries
  • weekly pipeline notes
  • daily compliance scan

The trigger matters because it defines timing, load, and reliability expectations. If the workflow runs on every inbound email, latency may matter. If it runs overnight to prepare summaries, throughput and retry handling may matter more.

3) Context retrieval

Context retrieval is the step that gives the model the business information it actually needs.

This is where many AI systems stop being toys and start becoming usable. The raw input is often not enough. A support email may need product policy documents, refund rules, account history, or knowledge base content. A sales transcript may need account records, open opportunities, prior meeting notes, or product catalog data.

This is one reason AI in business is not just a chatbot. The value often comes from combining the model with company-specific information at the right moment.

Context retrieval can involve:

  • keyword or semantic search over internal documents
  • fetching CRM data
  • pulling recent order history
  • loading account metadata
  • retrieving policy snippets
  • bringing in prior workflow state

The retrieval layer should be selective. More context is not automatically better. The job is to supply the minimum relevant information needed for the next decision. NIST’s generative AI profile emphasizes risk management across the AI lifecycle, including the way systems are designed and used in real business processes, not just the model itself.

4) Model call or model calls

The model call is the step people notice first, but in a real AI workflow it is often just one stage.

Sometimes there is only one model call:

  • classify the incoming email
  • draft the reply
  • extract the entities
  • summarize the transcript

Sometimes there are several:

  • classify the request
  • choose retrieval scope
  • draft a response
  • score confidence
  • extract structured fields

That multi-step pattern is common because different tasks have different reliability requirements. A workflow might use one model call to classify urgency, another to generate a response draft, and a third to convert the result into structured fields for an internal system.

When the workflow needs machine-readable output, output structure matters. OpenAI’s Structured Outputs documentation states that structured outputs match the response to a provided schema more reliably than basic JSON mode, and Azure’s corresponding guidance similarly recommends structured outputs for function calling, extraction, and complex multi-step workflows. That matters because validation becomes much easier when outputs are shaped to a schema rather than left as free-form prose.

5) Validation

Validation is the checkpoint between “the model said something” and “the business can trust it enough to continue.”

This is one of the most underbuilt parts of AI systems.

Validation can be technical:

  • is the output valid JSON
  • does it match the required schema
  • are required fields present
  • is the confidence above threshold
  • did the tool call arguments parse correctly

Validation can also be business-specific:

  • is the refund amount within policy
  • is the recommended action allowed for this account tier
  • does the message contain prohibited language
  • is the ticket category one we allow to auto-close
  • is the CRM update mapped to a known field

This is where deterministic software should do what deterministic software does best. The model can generate candidates. The system should enforce rules.

That is also why structured outputs are useful. They reduce one class of failure: output shape mismatch. They do not remove the need for policy checks, approval logic, or business rules. OpenAI’s documentation is explicit that JSON mode alone only ensures valid JSON, while structured outputs are the stronger option for schema adherence.

6) Human review or approval

Human review is where accountability usually lives.

Not every workflow needs a human on every run. Some internal low-risk workflows can be fully automated once validated. But many business workflows should include human review, especially when the output affects customers, revenue, compliance, legal exposure, or material system changes.

Human review can appear in several forms:

  • approve or edit before sending a customer response
  • confirm extracted action items before writing to CRM
  • review exceptions only
  • spot-check a sample of outputs
  • escalate low-confidence cases to a queue

This is not a sign that the system failed. It is often the correct design. Human oversight is a control layer, not an embarrassment. NIST’s frameworks emphasize trustworthiness, accountability, and risk management in AI systems, and IBM’s explanation of human-in-the-loop describes human participation as a way to improve accuracy, safety, and accountability in automated processes.

A good rule is this: the more external, irreversible, regulated, or high-cost the action, the stronger the case for human review.

7) Downstream action

Downstream action is what the workflow does after approval or successful validation.

This is the operational endpoint. It is the part that connects AI to business value.

Examples include:

  • send the approved email reply
  • update the CRM
  • create a task in a project system
  • tag a support ticket
  • route an item to a queue
  • write a summary into a record
  • trigger another internal workflow
  • create an audit record

Without downstream action, many AI systems remain interesting demos rather than useful business systems.

Anthropic’s tool-use model makes this clear at the architectural level: the model can decide to call a tool, but the surrounding application executes the actual tool and controls what happens next. The action is owned by the application layer, not magically performed by the model alone.

8) Logging and measurement

Logging and measurement are what make the workflow operable over time.

This is where many teams discover whether they built a system or a demo.

Logging should usually capture:

  • workflow start and end time
  • input identifiers
  • retrieval sources used
  • model version
  • prompt or template version
  • output schema status
  • validation failures
  • human approval decisions
  • downstream action status
  • retry counts
  • latency
  • cost or token usage when available

Measurement should answer business questions:

  • Did handling time go down?
  • Did approval rates improve?
  • Did the workflow increase throughput?
  • How often do humans edit drafts?
  • What percentage of outputs fail validation?
  • Which retrieval sources correlate with better outcomes?
  • Which workflow steps create delays?
  • Is the system worth its operating cost?

Observability documentation from Google Cloud frames observability as the ability to understand behavior, health, and performance across connected systems. That idea maps directly to AI workflows. You need to see how the whole chain behaves, not just whether the model endpoint returned 200 OK.

A simple architecture diagram

Here is a plain-English architecture view of a common AI workflow:

Input source
→ Trigger
→ Retrieve business context
→ Model call
→ Validate output
→ Human review if needed
→ Execute downstream action
→ Log results and measure performance

That sequence is not universal, but it is a strong default mental model.

Example 1: Inbound support email workflow

Let’s make this concrete.

A customer sends an email asking for a refund on a delayed shipment.

Input source: inbound support email
Trigger: new email arrives in the support inbox
Context retrieval: fetch refund policy, order status, order history, customer tier, and prior ticket notes
Model call 1: classify the message by intent and urgency
Model call 2: draft a reply grounded in the retrieved policy
Validation: ensure the draft cites the correct policy outcome, stays within tone rules, and produces the required structured fields
Human review: support agent approves or edits the draft
Downstream action: send email, update ticket fields, log outcome
Logging and measurement: record resolution time, edit distance, approval rate, and repeat-contact rate

Notice what the model is not doing here. It is not “running customer support.” It is helping inside a controlled support workflow.

If the workflow is well designed, low-risk cases may become faster without giving away final control. If it is badly designed, the model may hallucinate policy, quote the wrong refund rule, or overconfidently promise something the business cannot honor.

Example 2: Sales call transcript workflow

Now take a sales workflow.

A recorded sales call is transcribed after the meeting.

Input source: call transcript
Trigger: transcript completed by the meeting system
Context retrieval: fetch account name, opportunity stage, prior notes, product line, and open tasks
Model call 1: generate a concise call summary
Model call 2: extract action items, objections, next steps, and product interests into a structured format
Validation: confirm required fields are present and map extracted items to valid CRM schema
Human review: account executive reviews and edits before commit
Downstream action: write approved summary and tasks into CRM
Logging and measurement: track saved admin time, edit rate, field accuracy, and follow-up completion

Again, the model is a component inside a business process. The real system includes the transcript source, CRM retrieval, field mapping, approval step, and performance feedback.

Pseudo-pipeline examples

Support workflow pseudo-pipeline

  1. Receive inbound email
  2. Parse sender, subject, body, and account identifier
  3. Retrieve relevant policy and order records
  4. Classify intent and urgency
  5. Draft response with structured fields:
    • intent
    • recommended policy outcome
    • response draft
    • confidence
  6. Validate schema and business rules
  7. Route to agent review if needed
  8. Send approved response
  9. Update ticket
  10. Log metrics

Sales workflow pseudo-pipeline

  1. Receive completed transcript
  2. Retrieve account and opportunity context
  3. Summarize conversation
  4. Extract action items and risks
  5. Validate field structure
  6. Present to salesperson for review
  7. Write approved updates to CRM
  8. Log latency, edit rate, and task completion

Simple Python-style flow sketch

The following example is illustrative pseudocode. It shows control flow, not a production-ready implementation.

# AI workflow example: support email drafting
#
# 1. Input source: new support email
# 2. Trigger: email ingestion event fires
# 3. Context retrieval: fetch order + policy docs
# 4. Model call: classify request and draft reply
# 5. Validation: enforce schema + business rules
# 6. Human review: agent approves or edits
# 7. Downstream action: send email + update ticket
# 8. Logging: store latency, approval decision, and outcomedef handle_support_email(email):
    customer = get_customer(email.sender)
    order = get_recent_order(customer.id)
    policy_docs = search_policy_docs(email.body, order.status)    prompt_context = {
        "email": email.body,
        "customer_tier": customer.tier,
        "order_status": order.status,
        "policy_docs": policy_docs,
    }    result = call_llm_for_structured_output(prompt_context)    validate_schema(result)
    validate_business_rules(result, order, customer)    if needs_human_review(result):
        approved_result = route_to_agent_review(result)
    else:
        approved_result = result    send_email_reply(email.thread_id, approved_result["reply_text"])
    update_ticket(email.ticket_id, approved_result)
    log_workflow_event(email.ticket_id, approved_result)

The important design lesson is not the syntax. It is the sequence. The AI call is embedded inside a pipeline with retrieval, validation, review, action, and logging.

Where teams usually get AI workflow design wrong

Mistake 1: Starting with the model instead of the process

Teams often ask, “Which model should we use?” before asking, “What exact business workflow are we improving?”

That creates vague projects. A better starting point is a process map:

  • what enters
  • what must happen
  • what must never happen
  • who owns approval
  • what counts as success

Mistake 2: Treating retrieval as optional background

In business settings, generic model knowledge is rarely enough. The system usually needs company context. The challenge is not just answering well. It is answering from the right information.

Mistake 3: Skipping validation

A fluent output is not a validated output. If the workflow writes to business systems, validation should be treated as required infrastructure.

Mistake 4: Using humans only as a fallback after failure

Human review works best when it is designed intentionally. Some steps should always be reviewed. Some should be reviewed only on exceptions. Some should be sampled for quality control. That is workflow design, not panic handling.

Mistake 5: Measuring only model quality

Teams sometimes ask whether the model summary was “good.” That matters, but the workflow is the real unit of value.

You should also measure:

  • completion time
  • manual editing burden
  • downstream accuracy
  • exception rate
  • customer or operator impact
  • total operating cost

Mistake 6: Confusing automation with autonomy

Automation means the system helps execute a business process. Autonomy means the system takes actions with less human intervention. Those are not the same thing.

A workflow can deliver real value while keeping strong human control. In most companies, that is often the right place to start.

How to design a good AI workflow

A practical design sequence looks like this:

Step 1: Define the business outcome

Be specific. “Improve support” is too vague. “Reduce average first-draft time for refund emails while maintaining policy compliance” is much better.

Step 2: Identify the input and trigger

What enters the system, and when should the workflow fire?

Step 3: Define the minimum required context

What information does the workflow need from internal systems to perform safely and usefully?

Step 4: Break the model task into bounded steps

Do not ask one model call to do ten jobs if separate steps will be easier to validate and measure.

Step 5: Decide what must be validated deterministically

Schemas, thresholds, field constraints, policy rules, and routing logic should usually live outside the model.

Step 6: Place the human checkpoint deliberately

Decide whether review is always required, threshold-based, or exception-based.

Step 7: Define the downstream action

What exact system update or external action happens when the workflow succeeds?

Step 8: Instrument the workflow

Log enough information to debug, evaluate, and improve the system.

When not to automate aggressively

Not every workflow should move straight to full automation.

Be cautious when:

  • the output carries legal or financial consequences
  • the action is customer-visible and hard to reverse
  • the source data is messy or inconsistent
  • the business rules change frequently
  • evaluation criteria are unclear
  • the organization lacks operational ownership

In those cases, a draft-first or review-first workflow is usually safer than an autopilot design.

The strategic lesson

The business anatomy of an AI workflow is really a lesson in system design.

Useful AI is rarely just “ask a model a question.” It is a chain of business decisions wrapped around a model call:

  • what started this
  • what information is allowed in
  • what shape should come out
  • what rules must be satisfied
  • who approves
  • what action follows
  • what gets measured afterward

That is why strong AI implementation work looks a lot like operations design, software integration, and risk management. The model matters, but the workflow determines whether the model is useful.

When teams understand that, they stop asking how to “add AI” in the abstract and start building systems that can actually survive inside a company.

Key Takeaways

  • AI workflow is the correct mental model for business AI.
  • The model is only one component in a larger operational system.
  • Most business AI workflows include input, trigger, retrieval, model calls, validation, human review, downstream action, and measurement.
  • Validation and logging are not optional production extras. They are core design elements.
  • Human review is often a feature of a good workflow, not evidence of failure.
  • Business value comes from reliable process improvement, not from having a chatbot attached to a process.

Practical Exercise

Objective: Map one real business AI workflow in your organization.

Task: Pick a workflow such as support triage, lead qualification, meeting summaries, document review, or internal knowledge assistance. Then write a one-page workflow map with these headings:

  • Input source
  • Trigger
  • Context retrieval
  • Model call or model calls
  • Validation rules
  • Human review point
  • Downstream action
  • Logging and measurement

Starter instructions:

  1. Choose a workflow that already exists without AI.
  2. Describe how the process works today.
  3. Mark which parts are deterministic rules and which parts involve judgment.
  4. Insert AI only where it helps with a bounded task such as classification, drafting, extraction, or summarization.
  5. Add at least two concrete validation checks and one measurement metric.

What success looks like:

  • You can explain the workflow end to end in plain language.
  • You can identify where AI fits and where it does not.
  • You have at least one human control point or a defensible reason not to use one.
  • You can name one business metric the workflow should improve.

Stretch goal:
Create two versions of the same workflow: a draft-first version with human approval and a more automated version for low-risk cases only. Compare what would need to change in validation and measurement before moving from the first to the second.

FAQ

What is an AI workflow?

An AI workflow is a business process that uses one or more AI model steps inside a broader system that includes triggers, context, validation, actions, and measurement.

Why is an AI workflow different from a chatbot?

A chatbot is usually just an interface pattern. An AI workflow is an operational system connected to business data, rules, review, and downstream actions.

Does every AI workflow need retrieval?

No. Some simple classification or transformation tasks do not need external context. But many useful business workflows do.

Does every AI workflow need human review?

No. Low-risk internal workflows can sometimes run automatically after strong validation. Higher-risk workflows usually need at least some human oversight.

What is the biggest design mistake?

Treating the model as the product and ignoring the surrounding workflow.

What should I measure first?

Start with throughput, approval or edit rate, validation failure rate, and one business outcome such as response time or completed follow-up tasks.

Sources

Sign up for the kylebeyke.com newsletter and get notifications about my latest writings and projects.

Leave a Reply

This site uses Akismet to reduce spam. Learn how your comment data is processed.
